Collection system: data collector (HY321)

Sensors: Temperature sensor (HYA-T)

       Rainfall sensor (DSC/SL2-1/SL3-1; adaptable to 0.1mm and 0.5mm tipping-bucket rain gauges as well as integrated tipping-bucket rain gauge of 0.1mm and 0.5mm rainfall)

Communications system: GPRS/CDMA/SMS/ Big Dipper Satellite

Power supply system: Solar energy/AC powered, equipped with rechargeable battery

       DSD21 automatic tipping-bucket rainfall station is widely applied in meteorology, hydrology, agriculture and environment protection, in particular for specialized monitoring of geological disasters such as torrential flood, harnessing medium to small size rivers, medium to small size reservoir risk-removing and consolidation.

 l  Full automation, suitable for field operation; adaptable for all installation environments; salt-, moisture-, corrosion-proof in coastal, mountainous and high-humidity areas;

l  Integration, compact structure, easy installation;

l  Low power consumption and back-up battery for long operation;

l  High reliability, free of daily maintenance;

l  Supportive of multi-communicational modes including GPRS, CDMA, and Big Dipper Satellite, etc.

l  Data transmission to 4 central stations from the same station;

l  New materials, anti-theft design;

l  Real-time operation monitoring;

l  Lightning protection design (Level 3)

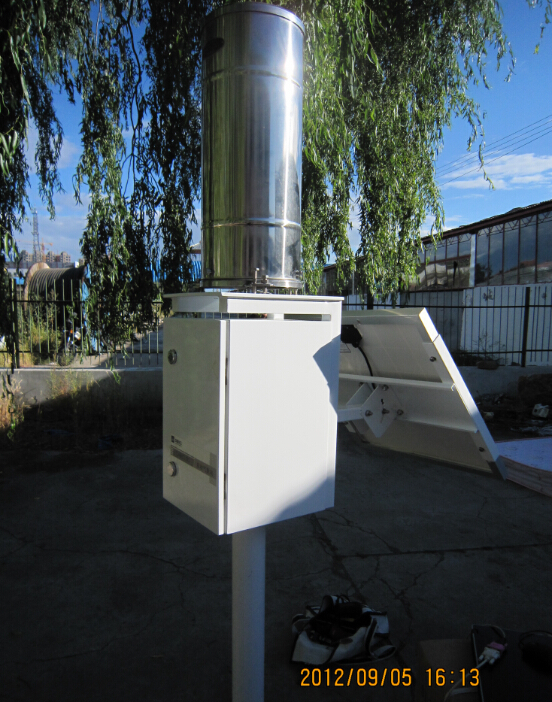

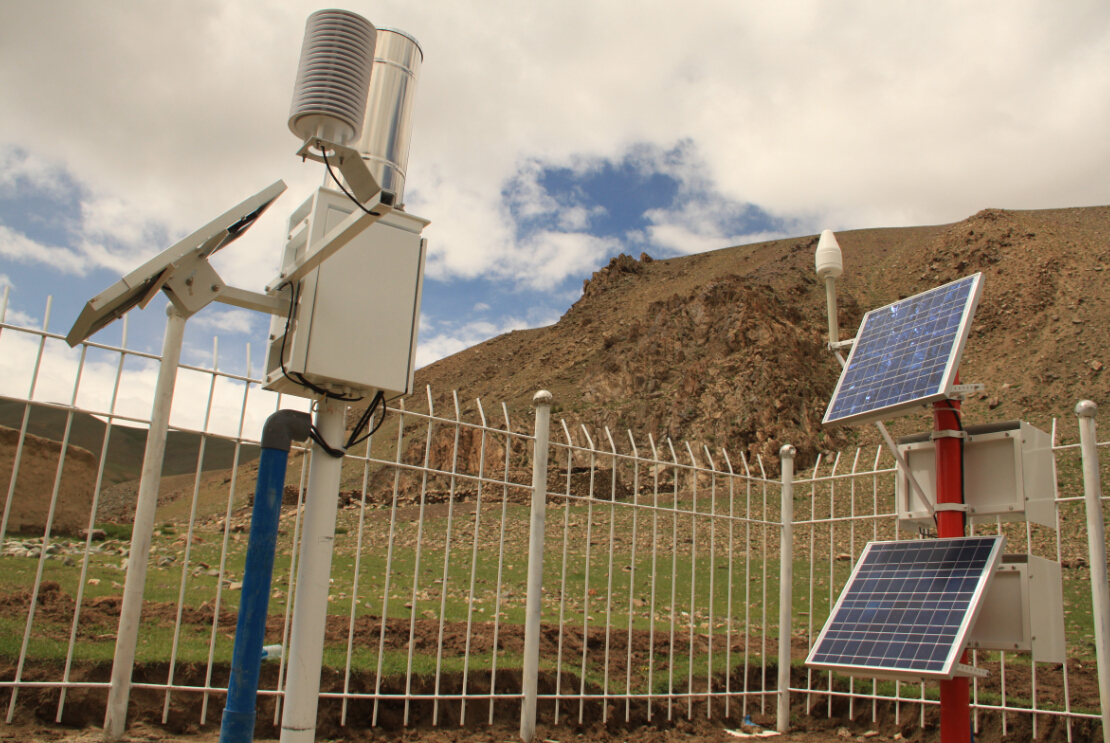

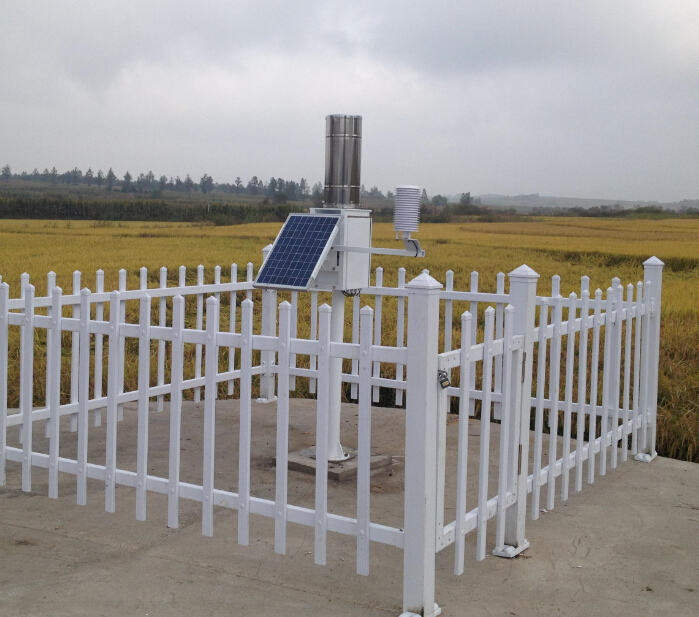

        DSD21 automatic tipping-bucket rainfall station is 24-hour meteorological monitoring equipment specially designed for observing rainfall and air temperature in geological disaster stricken areas, especially rural areas where torrential rain strikes frequently. The whole system includes integrated high-precision data collector (with intelligent GPRS/CDMA/SMS modules) together with the solar energy recharging control, storage battery, etc and related sensors. It can operate on a 24-hour basis in unmanned severe environments. These stations could also form mesoscale meteorological monitoring networks, with each DSD21 automatic tipping-bucket rainfall station as a sub-station transmitting data to the central station. Applying the CAWSAnyWhere2010 software for regional AWS integrated data collection platforms, these stations are capable of remote parameter setting and accessing, data access and processing, with flexibility of SMS setting and accessing parameters or through display terminals for meteorological elements. Two different types of installation are mast and cabinet modes.
